Detail Produk

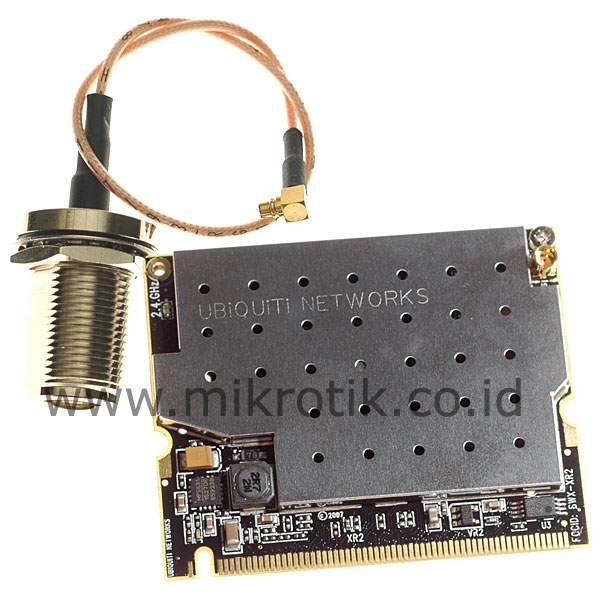

XR2 Wireless Minipci 600mW BG

klik pada gambar untuk melihat gambar lebih besar

Brand	:	Lainnya
Jenis	:	Interface
Kode	:	XR2
Harga	:	Rp 1.860.000,00

beli barang ini

The XtremeRange2 represents the first true carrierclass 802.11b/g-based 2.4GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise. Including MMCX - NFemale pigtail.

Download Brosur

Spesifikasi Teknis:

• Chipset: Atheros, 6th Generation, AR5414
• Radio Operation: IEEE 802.11b/g, 2.4GHz
• Interface: 32-bit mini-PCI Type IIIA
• Operation Voltage: 3.3VDC
• Antenna Ports: Single MMCX
• Temperature Range: -45C to +90C (extended temp version up to +95C)
• Security: WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
• Data Rates: 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
• TX Channel Width Support: 5MHz / 10MHz / 20MHz / 40MHz
• RoHS Compliance: YES
• Wireless Modular Approvals: FCC Part 15.247, IC RS210
