| Brand | : | Teltonika |
| Jenis | : | Switch Unmanaged |
| Kode | : | TSW010 |
| Harga | : | LOGIN UNTUK MELIHAT HARGA KHUSUS |

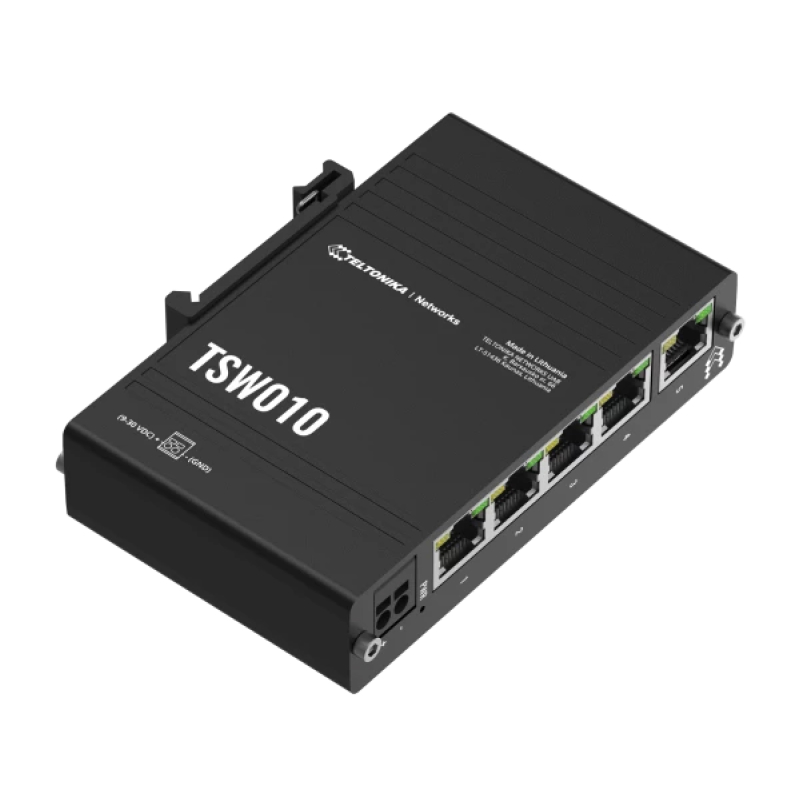

TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
Features :
Specification
| Model | TSW010 |
| ETHERNET | |
| LAN | 5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3x, 802.3az |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC address table size | 2K entries |
| Jumbo frame support | 2048 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 0.9 W |
| PHYSICAL INTERFACES | |

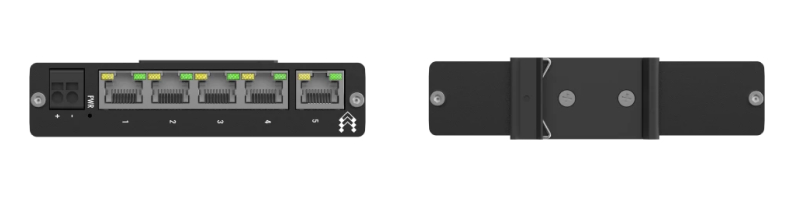

| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Standard Package Contains :
