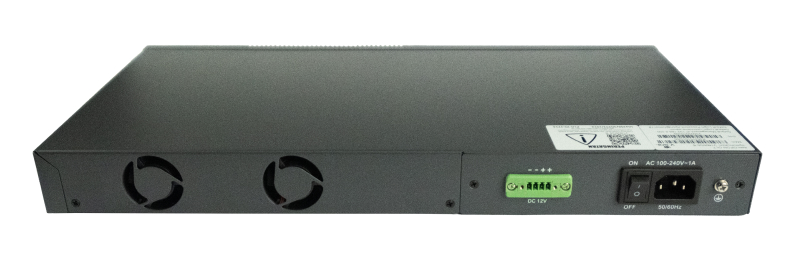

V1600G0-B V-SOL 4PON GPON OLT

V1600G0-B V-SOL 4PON GPON OLT
klik pada gambar untuk melihat gambar lebih besar

Kategori:V-SOL
  Promo
Kode:V1600G0-B
Harga:Rp 11.200.000,00
  Rp 12.250.000,00

The V1600G0-B vsol is a pizza-box GPON OLT with 4 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/remote/cost-sensitive area, smart industrial park, commercial building and FTTM, etc.

4*GPON,2GE(RJ45)+2*10GE(SFP+) Dual power modules available in DC/AC

*Sudah termasuk 4x SFP 9dBm

Download Brosur



Specification

Model V1600G0-B
Uplink Port QTY : 4
RJ45(1G) : 2
SFP(1G)/SFP+(10G) : 2
GPON Port QTY : 4
Physical Interface : SFP Slots
Supported PON module level :
Class B+, C, C+, C++, C+++
Max splitting ratio : 1:128
Management Port 1*10/100/1000 BASE-T out-band port, 1*CONSOLE port, 1*USB2.0
Backplane Bandwidth (Gbps)  104
Port Forwarding Rate(Mpps) 47.616
PON Port Specification (Class C+++)  Transmission Distance : 20KM
GPON port speed :
Upstream 1.244Gbps
Downstream 2.488Gbps
Wavelength
TX 1490nm
RX 1310nm
Connector : SC/UPC
Fiber Type : 9/125μm SMF
Power supply AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
DC : Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V
Management Mode EMS, WEB, SNMP, Telnet , CLI
Working temperature -20 ~ +60 C
Storage temperature -40 ~ +70 C
Relative Humidity 5 ~ 95% (Non-condensing)
Dimension (L*W*H) 442 x 229 x 43.6 mm


Download Datasheet
