Detail Produk

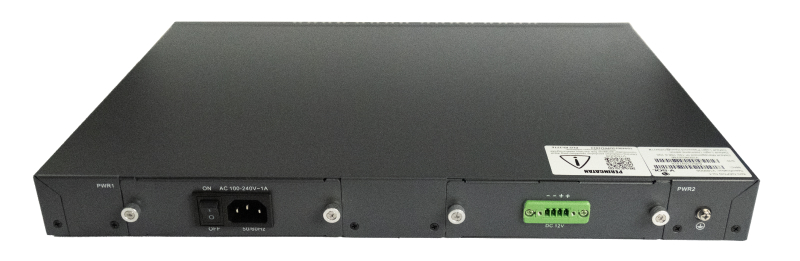

V1600D8 V-SOL 8PON EPON OLT

V1600D8 V-SOL 8PON EPON OLT
klik pada gambar untuk melihat gambar lebih besar

Kategori:V-SOL
  Promo
Kode:V1600D8
Harga:Rp 9.800.000,00
  Rp 10.700.000,00

V1600D8 vsol provides 8GE(copper) and 8*SFP slots independent interface for uplink, and 8*EPON OLT ports for downlink. It can support overall 512 ONU's with 64 ONU's per PON port.

8*EPON,8GE(RJ45)+4*GE(SFP)+4*10GE(SFP+)

*Sudah termasuk 8x SFP 9dBm

Download Brosur






Specification

Model V1600D4-BT
Uplink Port QTY : 16
RJ45(1G) : 8
SFP(1G) : 4
SFP+(10G) : 4
EPON Port QTY : 8
Physical Interface : SFP Slots
Supported PON module level :
PX20, PX20+, PX20++, PX20+++
Max splitting ratio : 1:64
Management Port 1*10/100 BASE-T out-band port, 1*CONSOLE port
Backplane Bandwidth (Gbps)  128
Port Forwarding Rate(Mpps) 71.424
PON Port Specification  Transmission Distance : 20KM
EPON port speed”Symmetrical 1.25Gbps
Wavelength
TX 1490nm
RX 1310nm
Connector : SC/UPC
Fiber Type : 9/125μm SMF
Power supply AC 100~240 V, 50/60 Hz
DC: -48V
Management Mode SNMP/Telnet/CLI/WEB/SSH v2
Working temperature -20 ~ +60 C
Storage temperature -40 ~ +70 C
Relative Humidity 5 ~ 95% (Non-condensing)
Dimension (L*W*H) 442 x 320 x 43 mm


Download Datasheet

Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.

Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
