| Brand | : | C-Data |
| Jenis | : | FTTH OLT |
| Kode | : | FDC600Y-FD1608Y |
| Harga | : | Rp 19.250.000,00 |

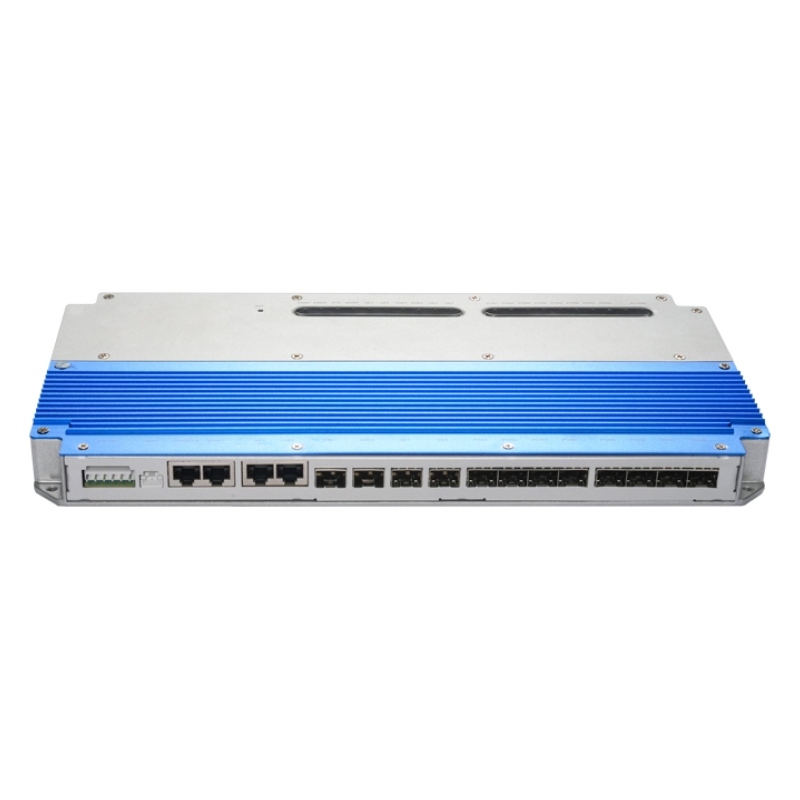

FD1608Y CDATA GPON OLT module is an outdoor local end module. The product is made of cast aluminum shell, which has good heat dissipation and shielding effect. The device is flexible in use and easy to deploy, meeting the performance requirements of the outdoor environment.
This product can be used with FDC600Y
Specification
| Model | FDC600Y-FD1608Y |
| Type | 1U 19-inch standard box |
| Uplink Port | 2* 10/100/1000 auto-negotiation Ethernet port |
| 2*SFP | |
| 2*SFP+ | |
| PON Port | Quantity : 8 |
| Physical interface : SFP slot | |
| Interface type : GPON: ITU-TG.984.2 Class B+/Class C+ | |
| Max splitting ratio : GPON: 1:128 | |
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
| Transmission distance | 20KM |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
| Wavelength | Forwarding: 1490nm Receiving: 1310nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Light transmission power | Class B+: +1.5 ~ +5dBm Class C+: +3 ~ +7dBm |
| Receiving sensitivity | Class B+: -28dBm Class C+: -30dBm |
| Saturation power | Class B+: -8dBm Class C+: -12dBm |
| Backplane Bandwidth | 74G |
| Power supply | 12VDC |
| Working temperature | -40 ~ 65C |
| Storage temperature | -40 ~ 85C |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
