| Brand | : | Ruijie - Reyee |
| Jenis | : | Router Rackmount |
| Kode | : | RG-WS6012-L |
RG-WS6012-L adalah wireless access controller (AC) berperforma tinggi dari Ruijie Networks yang dirancang untuk memenuhi kebutuhan jaringan nirkabel berkecepatan tinggi. Perangkat ini dapat diimplementasikan pada jaringan Layer 2 maupun Layer 3.
*Hanya bisa digunakan sebagai controller untuk Ruijie Access Point (Tidak bisa digunakan untuk Reyee Access Point)
RG-WS6012-L adalah wireless access controller (AC) berperforma tinggi dari Ruijie Networks yang dirancang untuk memenuhi kebutuhan jaringan nirkabel berkecepatan tinggi. Perangkat ini dapat diimplementasikan pada jaringan Layer 2 maupun Layer 3 tanpa memerlukan perubahan arsitektur atau perangkat keras, sehingga memberikan kontrol jaringan nirkabel yang aman, fleksibel, dan tanpa hambatan.

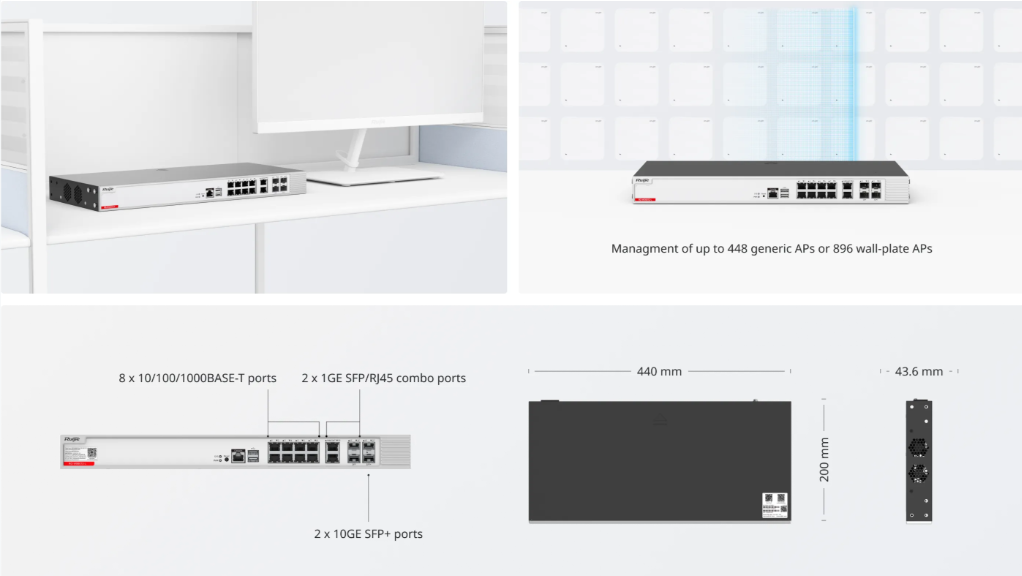

Secara default, RG-WS6012-L mampu mengelola hingga 32 access point (AP). Dengan lisensi ekspansi, kapasitas pengelolaan dapat ditingkatkan hingga 448 AP standar atau 896 AP tipe wall-mounted, menjadikannya solusi yang skalabel untuk berbagai kebutuhan jaringan.
Spesifikasi
| Model | RG-WS6012-L |
| Hardware specifications | |
| Memory | 4 GB |
| Flash memory | 16 MB |
| Fixed service port | 8 x 10/100/1000BASE-T ports |
| Fixed management port | 1 x RJ45 console port |
| Status LED | 1 x system status LED |
| Button | 1 x Reset button |
| Power Supply and Consumption | |
| Maximum power consumption | 30 W |
| Input power supply | 1 x 40 W built-in power module |
| Input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Input current | 0.25 A (maximum RMS current) |
| Output voltage | 12 V/3.33 A |
| Environment and Reliability | |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Altitude | Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing) |
| Acoustic noise | < 78 dB |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Performance and Capacity | |
| WLAN | |
| Default number of manageable APs | 32 Note: The default number of APs that can be managed by the RG-WS6012-L is subject to the AP model. |
| Maximum number of configurable APs | 2.048 |
| Maximum number of manageable APs | 896 Note: The maximum number of APs that can be managed by the RG-WS6012-L is subject to the AP model. |
| Maximum number of manageable STAs | 4,480 Note: The maximum number of STAs that can be managed by the RG-WS6012-L is subject to the network environment. |
| WLAN service | Maximum number of WLAN IDs: 2,048 |
| Intra-AC roaming handoff time | < 50 ms |
| Maximum number of virtualized ACs | 4 |
| Number of concurrent CAPWAP data channels | 896 |
| Routing and Switching | |
| Forwarding capacity | 10 Gbps (subject to the wireless network environment) |
| Number of MAC address entries | 32.768 |
| Number of VLANs | 4.096 |
| Number of ARP entries | 32.768 |
| DHCP address pools | Number of IPv4 address pools: 2,000 |
| Number of routing entries | IPv4 routing entries: 8,192 |
| Security and Authentication | |
| Maximum number of STAs supported by the built-in Portal server | 1.500 |
| Number of ACL entries | 65.536 |
