| Kategori | : | C-DATA & PON Accessories |
| Promo | ||
| Kode | : | FD512XW-R460 |
| Harga | : | (sesuai jumlah) |
| 1 - 19 | : | Rp 275.000,00 |
| 20 - 99 | : | Rp 259.000,00 |
| 100 - ... | : | Rp 249.000,00 |

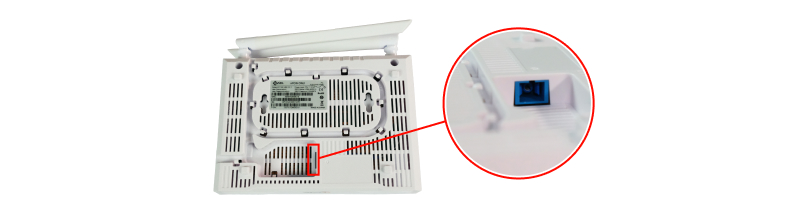

FD512XW-X-R460 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
Specification
| Model | FD512XW-X-R460 |
| GPON/EPON Port | Single mode single fiber GPON : FSAN G.984.2 standard, Class B+ EPON : 1000BASE-PX20+ symmetric |
| Downstream/Upstream | GPON : 2.488Gbps/1.244Gbps EPON : 1.25Gbps |
| Wavelength | Transmit : 1310nm Receiver : 1490nm |
| Port rate | EPON: Symmetrical 1.25Gbps |
| Wavelength | Forwarding : 1490nm Receiving : 1310nm |
| Receiving sensitivity | GPON : -28dBm EPON : -27dBm |
| Saturated power | GPON : -8dBm EPON : -3dBm |
| Transmitting power | GPON : 0.5 ~ 5dBm EPON : 0 ~ 4dBm |
| Receiving sensitivity | PX20+ : -28dBm |
| Saturation power | PX20+ : -8dBm |
| Backplane Bandwidth | 98G |
| User Port (LAN) | 1*10/100 and 1 *10/100/1000Mbps adaptive Ethernet port Full/half duplex Auto MDI/MDI-X |
| WIFI | IEEE802.11b/g/n (2.4G) Max rate: 300M (2.4G) Max TX power: 2.4G : 17dBm |
| Power | External 12VDC/0.5A power supply adapter |
| Power consumption | <4W |
| Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC |
| Operating humidity | 10% to 90%(Non-condensing) |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
